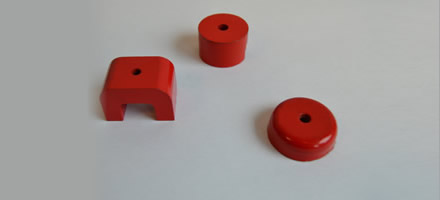

Les Bases Magnétiques Import sont composées d’AlNiCo et sont souvent isolées avec du fer.

Cet article est très souvent utilisé dans le secteur de l’industrie, notamment pour les applications à haute température de travail (450°C).

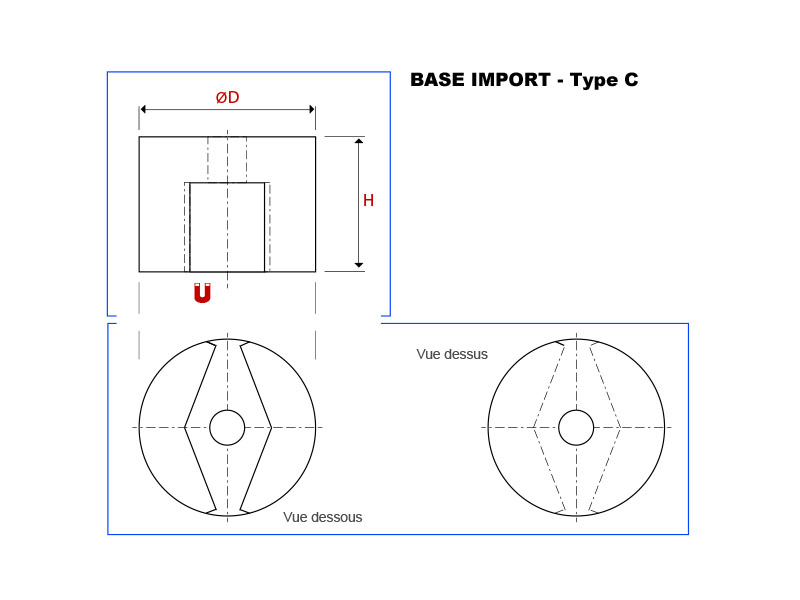

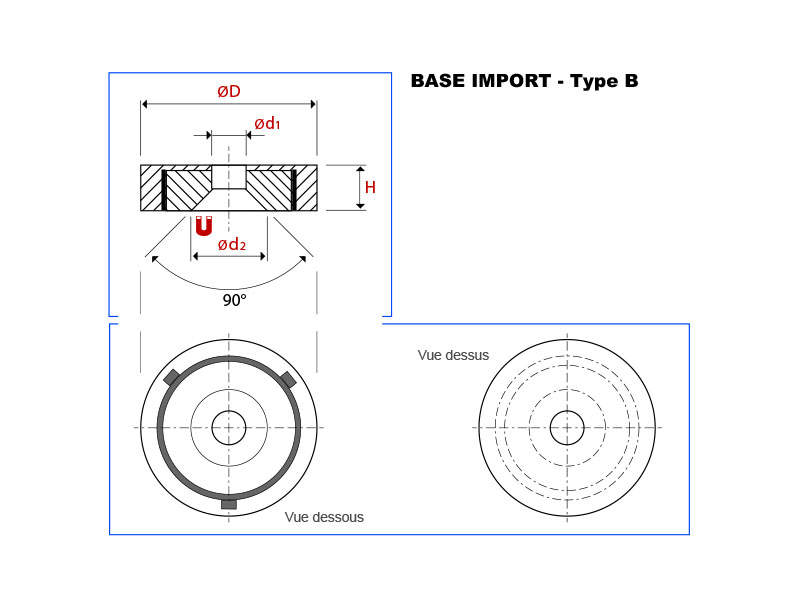

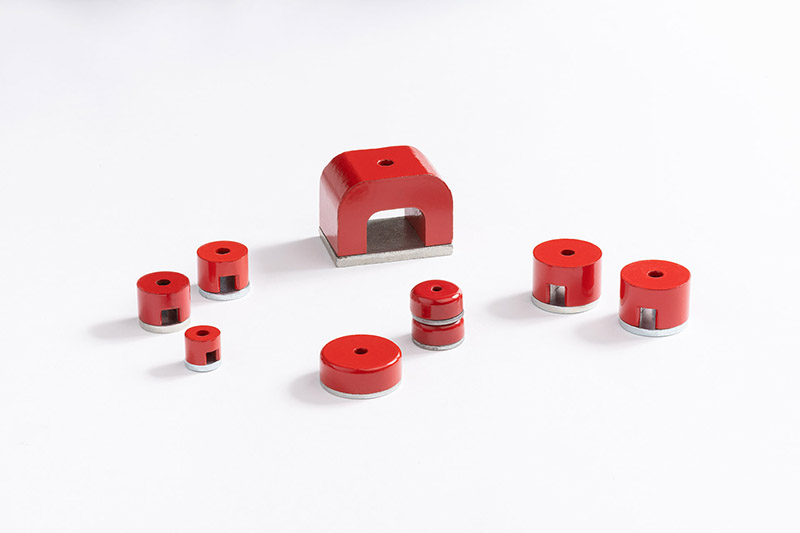

Aimants Calamit propose ces Bases Import dans trois formes spécifiques : Type B, Type Cet Type D (voir schémas ci-dessus).

Les base magnétiques Import sont construites en AlNiCo et sont souvent isolées par du fer. Elles sont ensuite recouverte d’une peinture de couleur rouge cuite au four.

Retrouvez ci dessous nos dimensions standards.

Nota: Toutes les valeurs des Forces à l’Arrachement relevées dans le tableau ci-dessous sont mesurées sur une plaque en acier de 5mm d’épaisseur.

‍

<div class="table-title"><div>Base Magnétique ALNICO Type B</div></div><div class="infos-tech-container"><div class="table-intitule w-clearfix"><div class="_23p table-cell">Code article</div><div class="_11p table-cell"><span class="txt-red">∅ D</span> mm</div><div class="_11p table-cell"><span class="txt-red">H</span> mm</div><div class="_11p table-cell"><span class="txt-red">d1</span> mm</div><div class="_11p table-cell"><span class="txt-red">d2</span> mm</div><div class="_11p table-cell"><span class="txt-red">F</span>orce (kg)</div><div class="_11p table-cell">T°C</div><div class="_11p table-cell"><span class="txt-red">P</span>oids (gr)</div></div><div class="table-content w-clearfix"><div class="_23p table-cell">B121</div><div class="_11p table-cell">19</div><div class="_11p table-cell">8</div><div class="_11p table-cell">3,5</div><div class="_11p table-cell">6,5</div><div class="_11p colored table-cell">1,6</div><div class="_11p table-cell">450</div><div class="_11p table-cell">.</div></div><div class="table-content w-clearfix"><div class="_23p table-cell">B122</div><div class="_11p table-cell">28,5</div><div class="_11p table-cell">9,5</div><div class="_11p table-cell">4,5</div><div class="_11p table-cell">8,5</div><div class="_11p colored table-cell">5,5</div><div class="_11p table-cell">450</div><div class="_11p table-cell">.</div></div><div class="table-content w-clearfix"><div class="_23p table-cell">B123</div><div class="_11p table-cell">37,5</div><div class="_11p table-cell">11</div><div class="_11p table-cell">4,5</div><div class="_11p table-cell">8,5</div><div class="_11p colored table-cell">9,5</div><div class="_11p table-cell">450</div><div class="_11p table-cell">.</div></div></div><div class="table-title"><div>Base Magnétique ALNICO Type C</div></div><div class="infos-tech-container"><div class="table-intitule w-clearfix"><div class="_12p table-cell">Code article</div><div class="_11p table-cell"><span class="txt-red">∅ D</span> mm</div><div class="_11p table-cell"><span class="txt-red">H</span> mm</div><div class="_11p table-cell"><span class="txt-red">C</span> mm</div><div class="_11p table-cell"><span class="txt-red">D</span> mm</div><div class="_11p table-cell"><span class="txt-red">d</span> mm</div><div class="_11p table-cell"><span class="txt-red">F</span>orce (kg)</div><div class="_11p table-cell">T°C</div><div class="_11p table-cell"><span class="txt-red">P</span>oids (gr)</div></div><div class="table-content w-clearfix"><div class="_12p table-cell">C1182</div><div class="_11p table-cell">12,7</div><div class="_11p table-cell">9,5</div><div class="_11p table-cell">4</div><div class="_11p table-cell">7,1</div><div class="_11p table-cell">4</div><div class="_11p colored table-cell">0,7</div><div class="_11p table-cell">450</div><div class="_11p table-cell">.</div></div><div class="table-content w-clearfix"><div class="_12p table-cell">C1181</div><div class="_11p table-cell">19</div><div class="_11p table-cell">12,7</div><div class="_11p table-cell">5,5</div><div class="_11p table-cell">9</div><div class="_11p table-cell">4,8</div><div class="_11p colored table-cell">1,9</div><div class="_11p table-cell">450</div><div class="_11p table-cell">?</div></div><div class="table-content w-clearfix"><div class="_12p table-cell">C1224</div><div class="_11p table-cell">25,4</div><div class="_11p table-cell">16</div><div class="_11p table-cell">5,5</div><div class="_11p table-cell">10</div><div class="_11p table-cell">4,8</div><div class="_11p colored table-cell">3,4</div><div class="_11p table-cell">450</div><div class="_11p table-cell">?</div></div><div class="table-content w-clearfix"><div class="_12p table-cell">C1508</div><div class="_11p table-cell">32,5</div><div class="_11p table-cell">25</div><div class="_11p table-cell">8</div><div class="_11p table-cell">11</div><div class="_11p table-cell">7</div><div class="_11p colored table-cell">4,8</div><div class="_11p table-cell">450</div><div class="_11p table-cell">?</div></div></div><div class="table-title"><div>Base Magnétique ALNICO Type D</div></div><div class="infos-tech-container"><div class="table-intitule w-clearfix"><div class="table-cell">Code article</div><div class="_11p table-cell"><span class="txt-red">∅ D</span> mm</div><div class="_11p table-cell"><span class="txt-red">H</span> mm</div><div class="_11p table-cell"><span class="txt-red">C</span> mm</div><div class="_11p table-cell"><span class="txt-red">D</span> mm</div><div class="_11p table-cell"><span class="txt-red">d</span> mm</div><div class="_11p table-cell"><span class="txt-red">F</span>orce (kg)</div><div class="_11p table-cell">T°C</div><div class="_11p table-cell"><span class="txt-red">P</span>oids (gr)</div></div><div class="table-content w-clearfix"><div class="_12p table-cell">D2130</div><div class="_11p table-cell">30</div><div class="_11p table-cell">20</div><div class="_11p table-cell">20</div><div class="_11p table-cell">15</div><div class="_11p table-cell">4</div><div class="_11p colored table-cell">4,5</div><div class="_11p table-cell">450</div><div class="_11p table-cell">.</div></div><div class="table-content w-clearfix"><div class="_12p table-cell">D2098</div><div class="_11p table-cell">38,1</div><div class="_11p table-cell">25,4</div><div class="_11p table-cell">25,4</div><div class="_11p table-cell">19,1</div><div class="_11p table-cell">5</div><div class="_11p colored table-cell">9</div><div class="_11p table-cell">450</div><div class="_11p table-cell">.</div></div><div class="table-content w-clearfix"><div class="_12p table-cell">D2051</div><div class="_11p table-cell">44,4</div><div class="_11p table-cell">29,5</div><div class="_11p table-cell">28,6</div><div class="_11p table-cell">22,2</div><div class="_11p table-cell">5,8</div><div class="_11p colored table-cell">11,8</div><div class="_11p table-cell">450</div><div class="_11p table-cell">.</div></div><div class="table-content w-clearfix"><div class="_12p table-cell">D2126</div><div class="_11p table-cell">58</div><div class="_11p table-cell">35</div><div class="_11p table-cell">44</div><div class="_11p table-cell">36</div><div class="_11p table-cell">2x8</div><div class="_11p colored table-cell">23,5</div><div class="_11p table-cell">450</div><div class="_11p table-cell">.</div></div><div class="table-content w-clearfix"><div class="_12p table-cell">D2127</div><div class="_11p table-cell">70</div><div class="_11p table-cell">41</div><div class="_11p table-cell">57</div><div class="_11p table-cell">41</div><div class="_11p table-cell">2x8</div><div class="_11p colored table-cell">37</div><div class="_11p table-cell">450</div><div class="_11p table-cell">.</div></div><div class="table-content w-clearfix"><div class="_12p table-cell">D2128</div><div class="_11p table-cell">78</div><div class="_11p table-cell">54</div><div class="_11p table-cell">82</div><div class="_11p table-cell">48</div><div class="_11p table-cell">2x105</div><div class="_11p colored table-cell">47</div><div class="_11p table-cell">450</div><div class="_11p table-cell">.</div></div></div>
